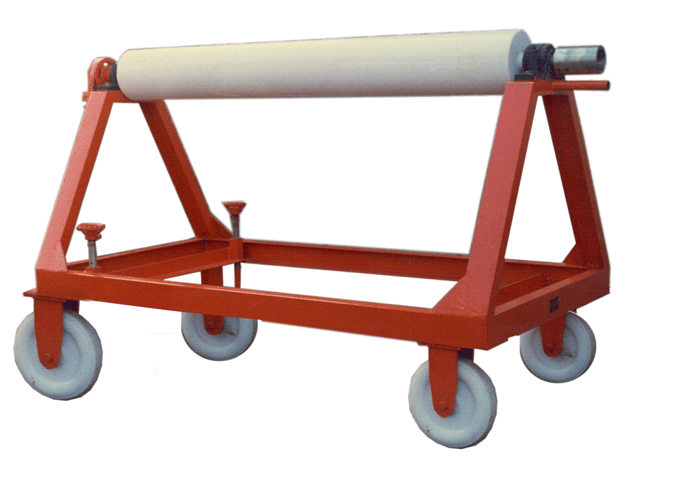

BATCHING TROLLEY FROM M.S. CHANNEL (100/50MM)
'A' FRAME TYPE |
|
|
| USE : |
| FOR CLOTH TRANSPORATATION IN TEXTILE MILLS |
| |
| SPECIFICATION : |
- It is fabricated from M.S. channel (100/50mm) x 3mm wall thickness.
- Top roll will be fabricated from M.S. Seamless Pipe with ebonite quoting. The end shaft is of RIB constructed or as per customers requirement. we are also making it cladding of S.S. Sheet on batch roll.
- Front side pooling system is of swivel type M.S. fabricated bracket and with 10" x 2" wheel and also as per customer’s requirement.
- Rare side is of fixed type 12" x 3" wheel.
- Batch coupling is fitted on batch roll for rotating.
|
| |

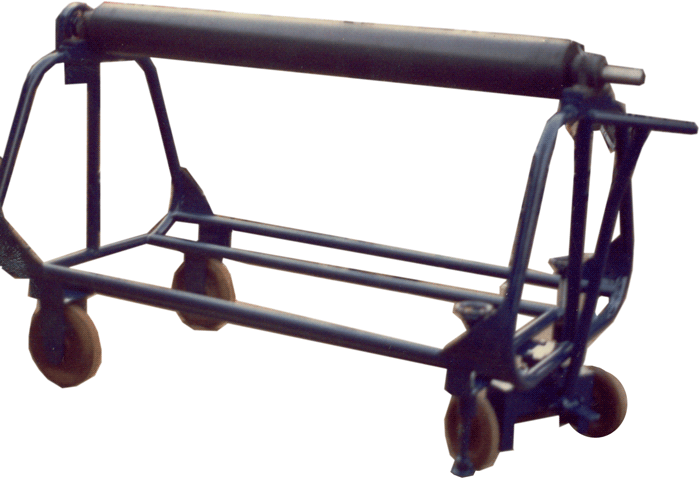

| BATCHING TROLLEY FROM M.S. PIPE |
|
|
| USE : |
| FOR CLOTH TRANSPORATATION IN TEXTILE MILLS |
| |
| SPECIFICATION : |
- It is fabricated from M.S. 50mm Diameter Pipe x 3mm wall thickness.
- The top roll is fabricated from M.S. Seamless Pipe with ebonite quoting. End shaft is of RIB constructed or as per customer's requirement.
- Front side pooling system is of Swivel type 10" x 2" wheel.
- Rare side is of fixed type 12" X 3" wheel.
|
